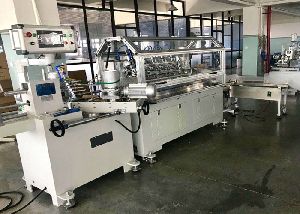

Paper Straw Making Machine

Paper Straw Making Machine

Specifications

Electric Machinery Debong Shanghai
Interface Schneider
Inverter 4kw Schneider
Actuating Element Schneider
Single Element OMCH
Pneumatic Components AirTAC
Electrical Components Schneider
Bearing HRB
Servo Motor 1KW Schneider
Moving Wire Rod ABBA Taiwan
Moving Slider ABBA Taiwan

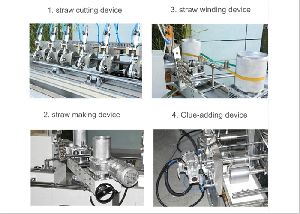

This Machine is suitable for producing different sizes of paper straws, such as 5mm; 6mm; 8mm; 10mm, 12mm, etc. With upgrade design for cutting device, before with 5 cutting knives, the speed will be 5 meters higher than before, the stable working speed: 40-50m/min.

  • Adopted with human-machine operation interface, the main motor is equipped with variable frequency speed regulation, Easy for parameters setting & operating.
  • Paper reeling stand, slitting rolls are easily placed into reel stand by electric lifting device.
  • Choose single or double glue coating unit.
  • Spiral winding part, hanging type operation panel, specialized operation system, Belt tension device (hand-wheel has driven).
  • Multi-knife system in-line cutting unit controlled by encoder, cutting the final paper tube directly.
  • Main parts: servo motor and inverter all use Schneider brand, Pneumatic components use Air TAC brand, with very stable performance.

Yes! I am interested

Submit Your Requirement


Machine Specifications

NAME OF EQUIPMENT --
Paper Layer 2-5 Layer
Inner Diameter 4-12mm
Thickness 0.3-1mm
Speed If with 5 cutters, the stable working speed is 30-40/minutes
Cutting System Program Control Multi Knife
Cutting Length 120-1050mm
Synchronous Tracking and Cutting Servo Motor Synchronous Tracking Cutting
Way of Gluing Single/Double
Fixed Length Way Encoder
Operator 1-2 Person
Speed Control Pole Free Speed Regulation
Fuselage Parts 380v/3phase/50Hz
Glue System Three Layer Spray Type
Fuselage Parts Medium Carbon Iron Plate / Stainless Steel
Model No. BS4535LA
Power supply 380V
Total power 9.6KW
Loading weight 30KGS
Size 1600X700X1100MM
Conveyor speed 0-10M/MIN
Weight 120KGS
